100-tonne hydraulic forming press

AHFP-100

These values describe the catalogue configuration. We agree the final configuration for your tooling, material and production cycle.

Pressing force100 tonUsable tooling area500 × 500 mmRam stroke600 mm
Discuss this model with usExplore the product familyExplore the 3D model

Photographs & videos

AHFP-100
No photographs or videos have been added for this model yet.

Explore the technical specifications and press cycle below.

Explore the 3D model

This is a representative 3D model of the press family. See the model’s technical dimensions below.

3D

Technical specifications

Pressing force
100 ton
Operating pressure
240 bar
Usable tooling area
500 × 500 mm
Ram stroke
600 mm
Maximum daylight
850 mm
Approach speed
150 mm/s
Working speed
6 mm/s
Motor power
7,5 kW

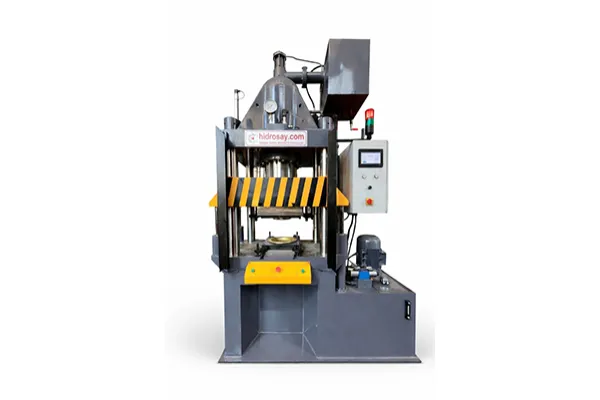

Gallery
