Working area
The space occupied by the part and die determines the platen size and daylight.
Forming presses
Explore forming presses to achieve your part's target geometry. Let us assess a solution suited to your process together.
HIDROSAY / PRESS FAMILIES03OF 07 FAMILIES
INTERACTIVE / 3D VIEWDie forming
Loading 3D model…
DRAG / ROTATE · LIGHT WITH POINTER · SCROLL / ZOOM
The 3D view is a representative model of the product family's form. Technical dimensions and equipment are determined by project requirements.
Model catalogue
Forming presses

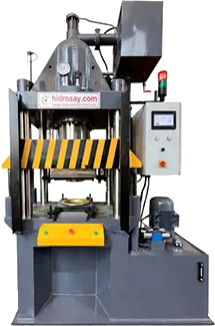

AHFP-200 Hydraulic forming press
- Pressing force
- 200 ton
- Operating pressure
- 220 bar
- Tooling area
- 700 × 700 mm
- Ram stroke
- 500 mm
- Maximum daylight
- 650 mm
- Approach speed
- 150 mm/s
- Working speed
- 2,5 – 6 mm/s
- Motor power
- 11 kW
HIDROSAY / PRODUCT REFERENCEIn this family,
what do we assess?
Die movement
The pressing axis, stroke and direction of movement are defined for the application.
Operator access
Areas for die changes, part feeding and part removal are included in the layout plan.
USEFUL PROJECT INFORMATION
Part drawing, material, die weight and dimensions, required stroke and production quantity.
