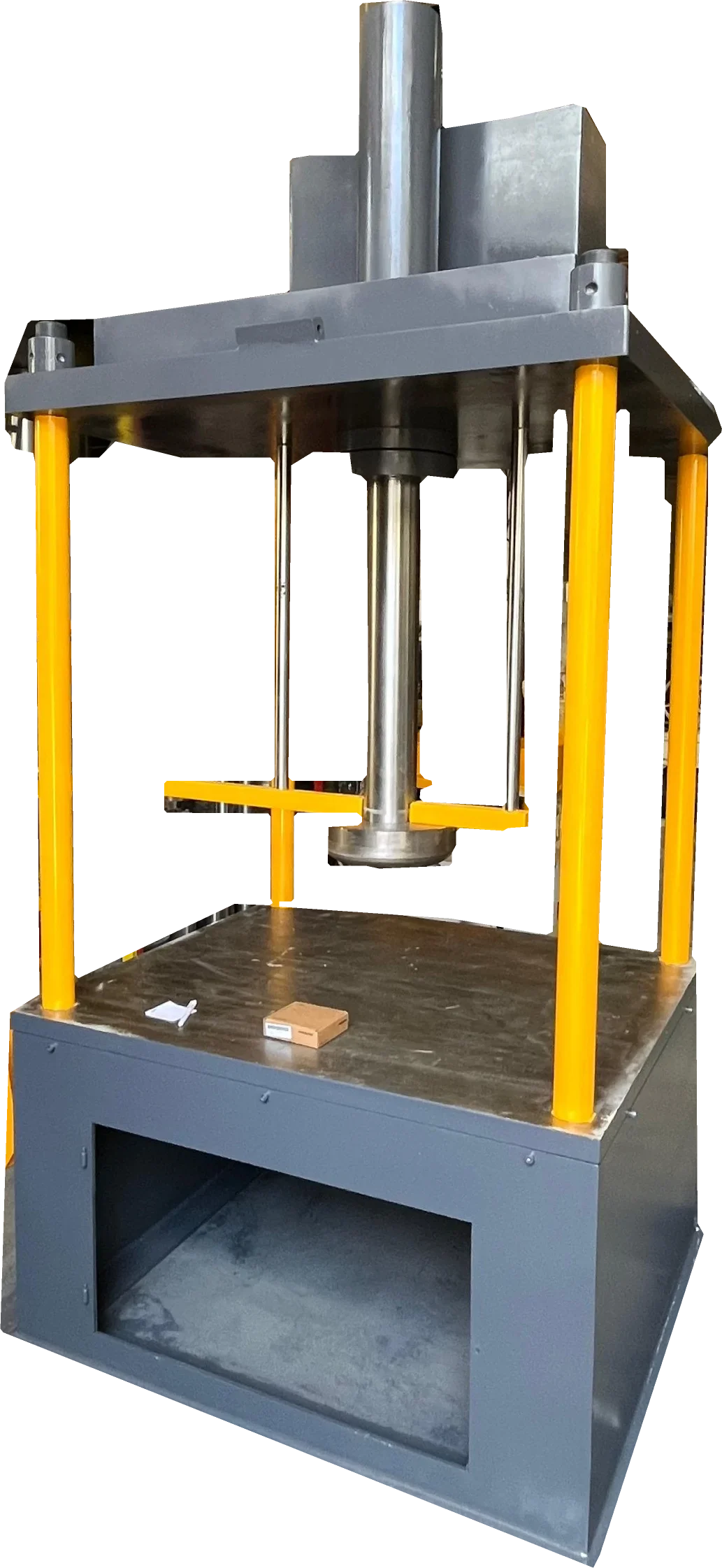

Custom hydraulic presses
We can build hydraulic test machines or presses of horizontal construction to suit your requirements.
HIDROSAY / PRESS FAMILIES08OF 08 FAMILIES
Model catalogue
Models and technical specifications
Choose a model: the technical drawing and values update to it. Below, all models side by side.
AHSP-100 · 100-TONNE HYDRAULIC HORIZONTAL PRESS
- Pressing force
- 100 ton
- Operating pressure
- 240 bar
- Usable tooling area
- 1000 × 1000 mm
- Ram stroke
- 800 mm
- Maximum daylight
- 800 mm
- Approach speed
- 80 mm/s
- Working speed
- 2,5 – 6 mm/s
AHTP-80 · 80-TONNE HYDRAULIC TEST MACHINE
- Pressing force
- 80 ton
- Operating pressure
- 240 bar
- Usable tooling area
- 900 × 900 mm
- Ram stroke
- 600 mm
- Working speed
- 2,5 – 4 mm/s
Compare the models
| Specification | AHSP-100 | AHTP-80 |
|---|---|---|
| Pressing force | 100 ton | 80 ton |
| Operating pressure | 240 bar | 240 bar |
| Usable tooling area | 1000 × 1000 mm | 900 × 900 mm |
| Ram stroke | 800 mm | 600 mm |
| Maximum daylight | 800 mm | — |
| Approach speed | 80 mm/s | — |
| Working speed | 2,5 – 6 mm/s | 2,5 – 4 mm/s |
